Description

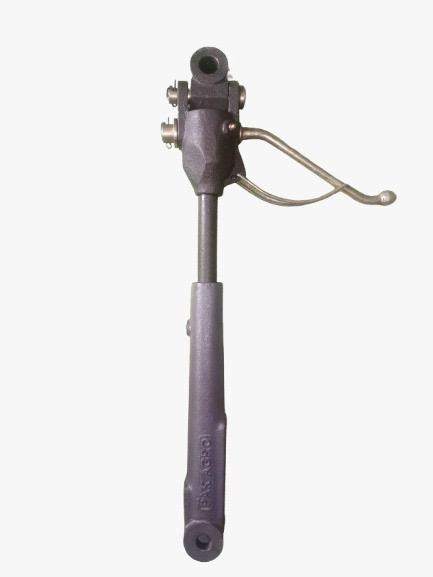

The standard eye-end levelling box assembly provides manual adjustment within the tractor rear linkage. Its upper joint, adjustment mechanism, lever, and lower body alter the effective linkage length.
Application and installed position
One side of the tractor rear linkage, used to adjust implement height, tilt, and working alignment.
Available variants
Different body lengths, eye diameters, fork or eye ends, lever arrangements, and adjustment ranges.
Material and finish
Engineering-grade ferrous construction. Exact material grade, heat treatment, machining condition, and protective finish are confirmed against the approved sample, drawing, and purchase specification.
Dimensions and tolerances
Manufactured against an approved sample, drawing, or dimensional schedule. Product-specific dimensions, tolerances, weight, and load requirements are approved during quotation.
Packaging
Protective bulk packaging, boxed sets, or buyer-specified commercial/export packing, confirmed in the quotation.
Information required for quotation
Provide the tractor make and model, closed and extended length, eye or pin dimensions, lever side, lower-end configuration, sample, and quantity.
Compatibility verification required. Confirm the tractor make, model, production version, installed position, dimensions, sample, drawing, or reliable reference before ordering.
KAF is an independent component manufacturer. Massey Ferguson names and model references are used only to identify applications that require verification; no OEM affiliation or endorsement is claimed.
