Description

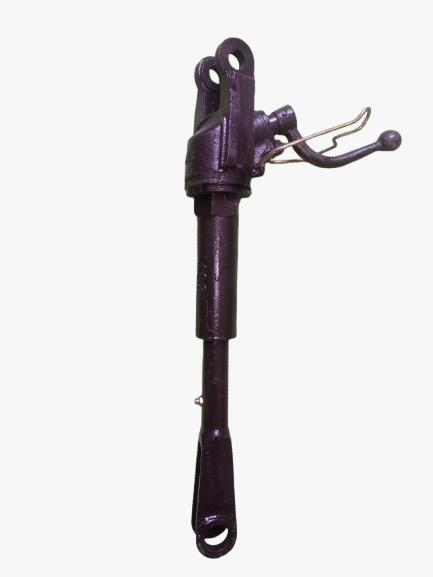

This complete levelling assembly combines a robust linkage body, upper joint, internal adjustment arrangement, and operating lever. The unit raises or lowers one side of a rear-mounted implement.
Application and installed position
Rear three-point-linkage levelling system, connecting the tractor lifting mechanism to the implement linkage.
Available variants
Alternative overall lengths, upper and lower end styles, lever profiles, pin arrangements, and adjustment travel.
Material and finish
Engineering-grade ferrous construction. Exact material grade, heat treatment, machining condition, and protective finish are confirmed against the approved sample, drawing, and purchase specification.
Dimensions and tolerances
Manufactured against an approved sample, drawing, or dimensional schedule. Product-specific dimensions, tolerances, weight, and load requirements are approved during quotation.
Packaging
Protective bulk packaging, boxed sets, or buyer-specified commercial/export packing, confirmed in the quotation.
Information required for quotation
Provide the tractor model, overall length, adjustment range, connection dimensions, lever orientation, photographs, and quantity.
Compatibility verification required. Confirm the tractor make, model, production version, installed position, dimensions, sample, drawing, or reliable reference before ordering.
KAF is an independent component manufacturer. Massey Ferguson names and model references are used only to identify applications that require verification; no OEM affiliation or endorsement is claimed.
