Description

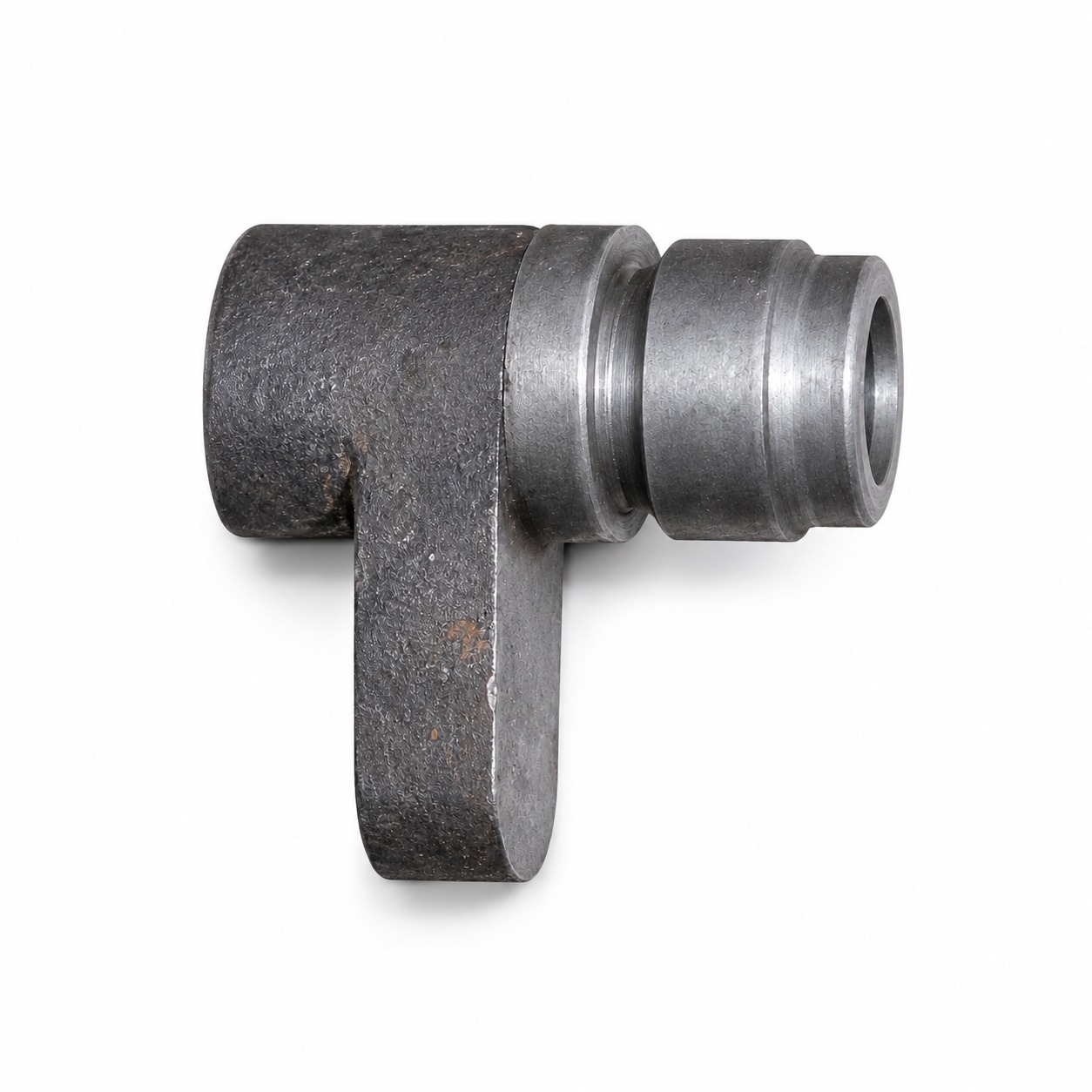

The KAF Holder Push Plug combines an L-shaped supporting body with a stepped cylindrical operating end. It is designed to locate, retain, push, or actuate a mating component while transferring force through a compact mechanical arrangement. Accurate geometry is important so the plug seats correctly, follows the required movement path, and operates without binding or excessive play.
Application and function
Used in a holder, locating, retaining, pushing, or actuation position within a selected Honda motorcycle mechanical assembly. The orientation, travel, engagement length, and mating features must be verified against the original assembly.
Design features and benefits
Rigid L-shaped body; stepped cylindrical engagement feature; controlled shoulder and contact faces; compact load-transfer geometry; designed for accurate positioning, dependable force transmission, secure fit, and repeatable movement under the approved operating conditions.
Available variants
Alternative body thicknesses, arm lengths, pin diameters, step diameters, shoulder locations, end profiles, holes, material grades, heat treatments, and finishes may be produced from an approved drawing or sample.
Material and finish
Precision-machined engineering-grade metal construction. The exact alloy, hardness, heat treatment, surface condition, corrosion protection, and lubrication requirements must be confirmed against the approved drawing, sample, and purchase specification.
Dimensions and tolerances
Produced to an approved drawing, master sample, or dimensional inspection schedule. Diameter, bore, length, flange or collar thickness, concentricity, runout, surface finish, and working clearances are confirmed before production; no unverified nominal dimensions are assumed.
Quality control
Inspection can include body profile, arm angle, pin and step diameters, shoulder position, perpendicularity, overall length, contact-face condition, hardness, finish, and functional checking with an approved gauge or mating sample.
Packaging
Clean, dry, protective bulk or partitioned packaging is available, with rust-prevention treatment, labels, batch identification, and buyer-specified domestic or export packing confirmed in the quotation.
Information required for quotation
Provide the motorcycle model and year, exact assembly position and function, overall dimensions, body thickness, arm lengths, pin and step diameters, engagement depth, photographs from several angles, drawing or sample, material or hardness requirement, and required quantity.
Model and dimensional verification required. Confirm the motorcycle model, model year, engine or chassis variant, installed position, mating-part dimensions, drawing, sample, or reliable part reference before ordering.
KAF is an independent component manufacturer. Honda names and references are used only to identify applications that require verification; no OEM affiliation, authorization, or endorsement is claimed.
